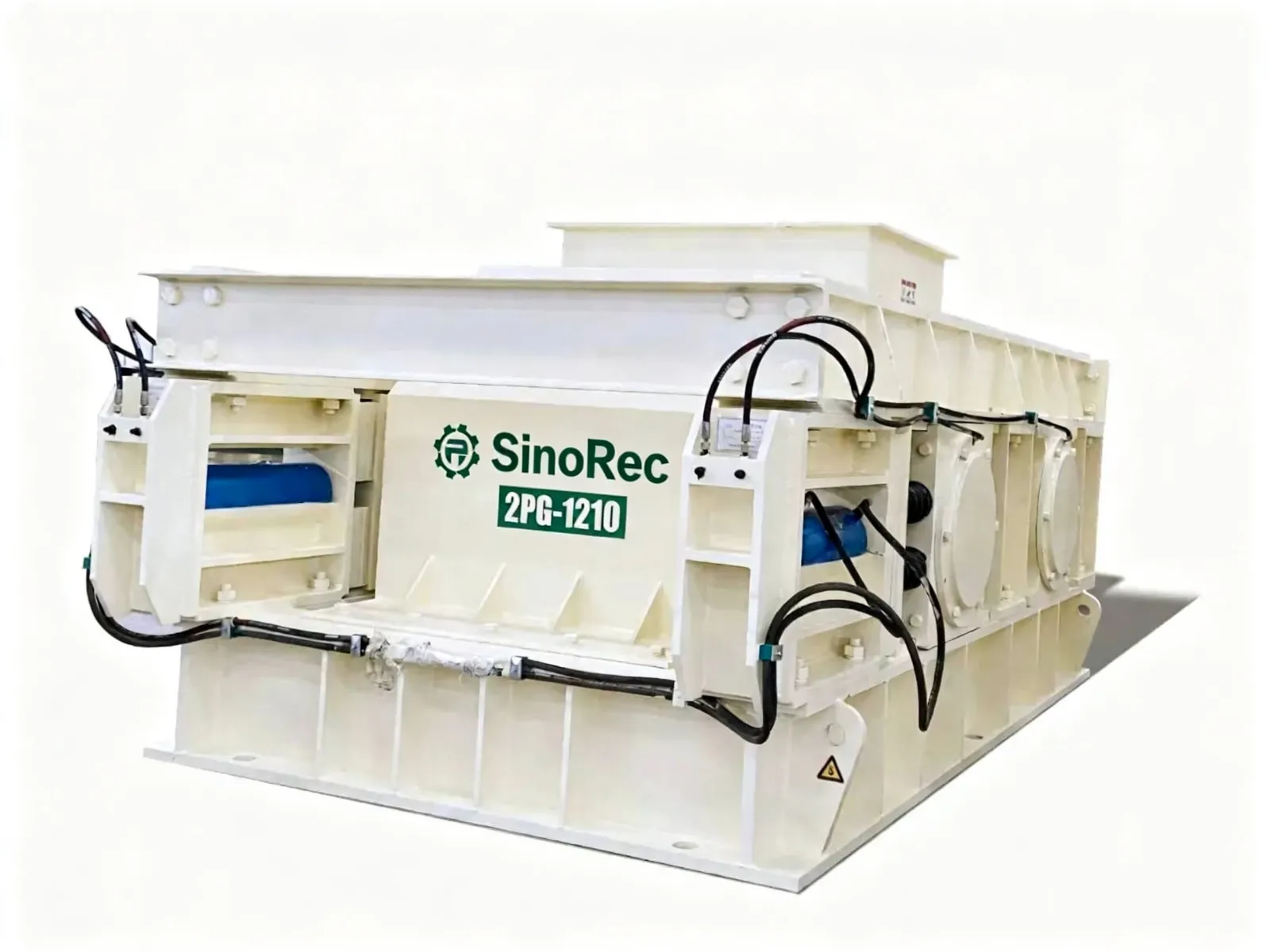

The 2PG reduces material between two counter-rotating rolls. Because reduction takes place in a single pass through a fixed gap, the product range is narrow and the proportion of fines below the target fraction is low — the property that matters in industrial sand and in mineral processing where over-crushing is penalised downstream.
Characteristics
- Fixed gap control: 2–10 mm product with a low over-crushing rate
- Roll shells in wear-resistant material, replaceable without removing the frame
- Hydraulic or spring loading to release tramp material
- Stable gradation, suitable for specification sand and blending
Application
Industrial sand, foundry sand and fine aggregate where the specification limits fines content. Also used as a tertiary unit behind an impact crusher.
Specifications
| Model | Feed size (mm) | Output size (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|
| 2PG0909 | <45 | 2–10 | 11–45 | 2×37 |
| 2PG1210 | <45 | 2–10 | 15–60 | 2×45 |
| 2PG1510 | <45 | 2–10 | 80–150 | 2×132 |
| 2PG1810 | <45 | 2–10 | 160–230 | 2×220 |
Capacity figures are stated at the discharge setting shown and for material of normal bulk density. Final selection is confirmed against the feed gradation and the required product fractions.
